Operating System:
Microsoft: Windows XP, Window 7, Windows 8, Windows 10
Load Bank Connection:
The PC is connected to the load bank via a supplied cross over cable
The PC or Laptop requires an 10 base T ethernet port for TCP/IP
connection to the load bank using settings:
Computer IP set to 10.1.1.2
Subnet mask set to 255.255.255.0
IP of the loadbank: 10.1.1.3
Installing the Software
From the CD Rom, run the file setup.exe from the directory Varicon Monitor.
For more details please visit our Varicon blog
Overview
The Varicon App is a data logging PC interfacing tool for use with a Hillstone load bank running the Varicon software.
The software will automate the recording of the overall battery parameters of Battery Volts, Discharge Current and ambient temperature.
The results are stored in a database format, thus allowing permanent recording and flexible data retrieval and display.

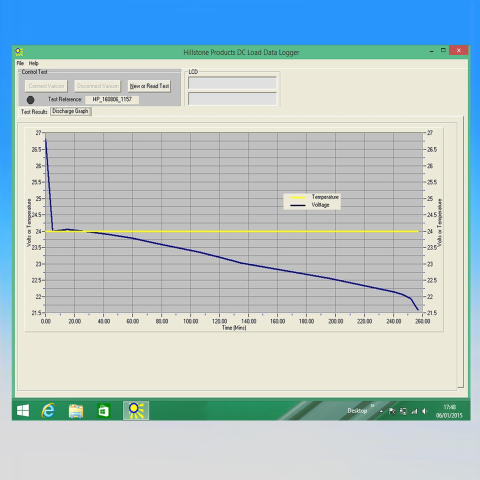

The software also displays the discharge results in a on screen graph format.
Connection is made from the PC or laptop to a load bank via a TCP/IP network cross over cable.
SYSTEM REQUIREMENT
